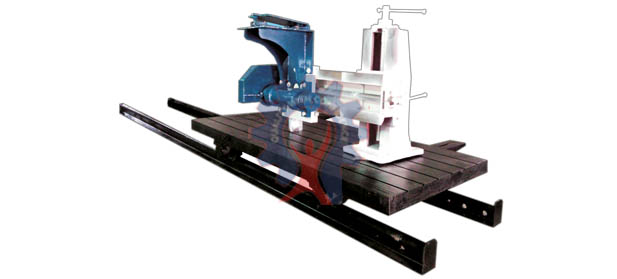

EDGE CUTTING MACHINE (Adjustable) is best suited for Edge Cutting of Slab. The machine is mounted on Vertical Pillar to allow Height Adjustment above Trolley. Complete Machine with Drive Pulley & Slab carrying (Cast iron)Trolley size 7’ X 3’ The Trolley moves on 15ft. Long Machines Rail Lines of 60 lbs/yard. |
|
 |
| THECHNICAL SPECIFICATION | ||
| 1 | Minimum diamond disc | 350 MM. |
| 2 | Maximum diamond disc | 600 MM. |
| 3 | Motor power | 7.5 HP. |
| 4 | Maximum cutting thickness of slab | 200 MM. |
| 5 | Rail Lines | 15ft. |
| 6 | Production capacity | 100/150 Sq. Ft. Per Hour |
| The production capacity mentioned above is subject to variation depend on type
of block cutter Condition, operator’s skills etc. The Complete Machine with Electric Motor. Diamond Tools are not Including. |
||
| PREM ENGINEERING WORKS | Manufacturers of : Derrick Crane, Gantry Crane, E.O.T. Crane, ARM Crane, Water Sedimentation Plant, Gangsaw, Block Dressing Machine, Granite Block Cutter (Automatic), Single Pillar Granite Block Cutter, Double Disc Cutter, Portable Edge Cutting Machine (Automatic), Portable Edge Cutting Machine (Manual), Single Arm Hand Polishing Machine (Manual), Single Arm Hand Polishing Machine (Marble & Granite), Wire Saw, Edge Cutting Machine |
